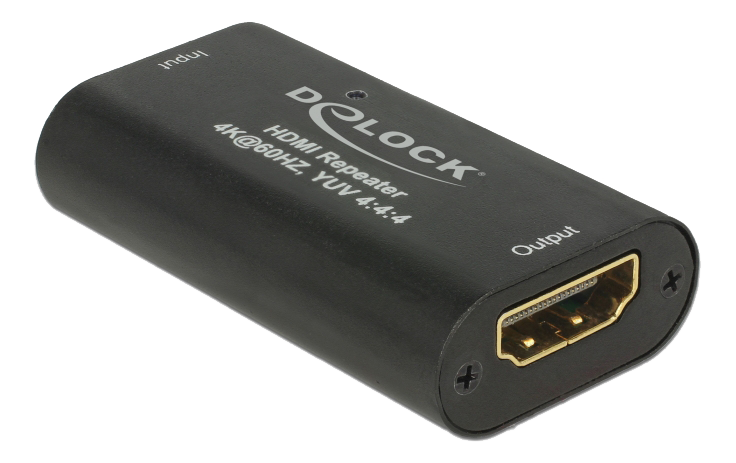

This HDMI repeater by Delock can be used for signal enhancement of an HDMI connection up to 30 m. An up to 20 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 10 m long cable to the output port of the repeater, which is then connected to a display or TV. The repeater supports a resolution of up to Ultra HD (4K @ 60 Hz) and is downwards compatible to Full-HD 1080p.
Specification
• Connectors:
Input: 1 x HDMI-A 19 pin female
Output: 1 x HDMI-A 19 pin female
• High Speed HDMI with Ethernet (HEC) specification
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps
• No external power supply needed
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 51 x 28 x 13 mm
System requirements
• A free HDMI port on your system and display
• HDMI connection cables
Package content
• HDMI repeater
• User manual

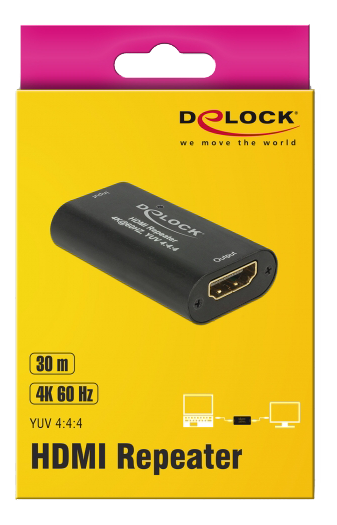

Package
• Retail Box
