Cooler Master MasterAir G100M, 92 mm fläkt, RGB LED
Cooler Master MAM-G1CN-924PC-R1
REDEFINING COOLING AGAIN
BREAK-THROUGH IN HEAT TRANSFER
The MasterAir G100M Heat column technology is a two-phase heat transfer involves the liquid-vapor phase change (boiling/evaporation and condensation) of a working fluid. The fluid is transferred by the copper powder filled inside the column creating an anti-gravity heat transfer.
7X LARGER DIAMETER THAN HEATPIPES
Super quick heat transfer is made possible with Heat Column at a massive Ø41.2, the equivalent of 7X the size of traditional heatpipes. The unification of heatpipes and base into one unit captures and effiicienty transfers the heat from CPU like never seen before.

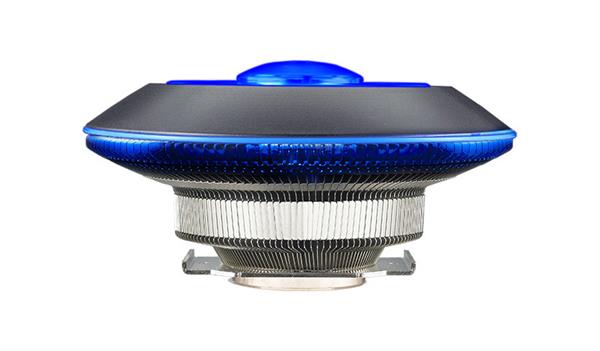

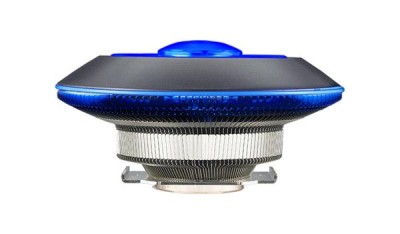

LOW PROFILE FOR MINI-ITX BUILDS
The low profile G100M stands at 74.5mm, a great fit for slim PC cases, including mini-ITX cases. Even at these small dimensions, the heatsink has cooling capacity of 130W TDP.

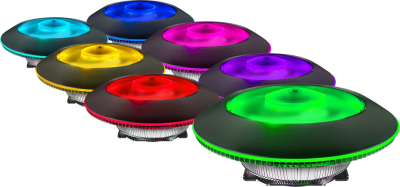

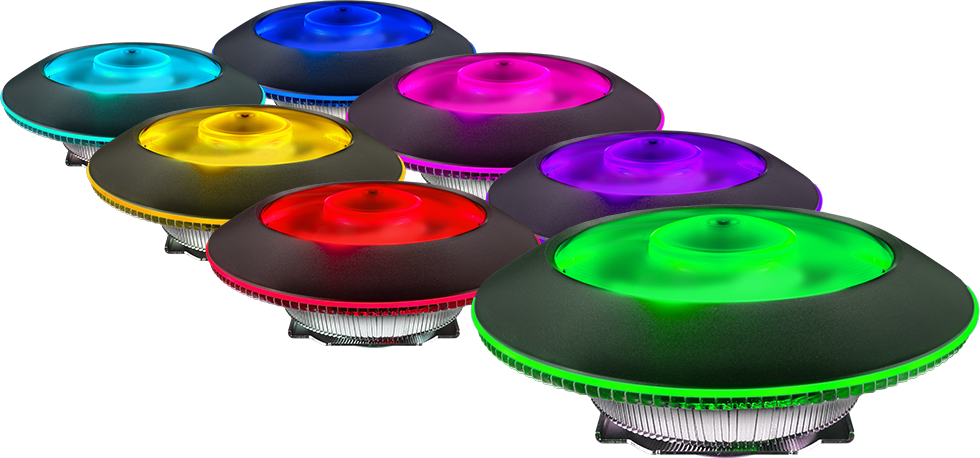

RGB LED ILLUMINATION (CONTROLLER INCLUDED)
A wired RGB LED controller is included with theM100M to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.
TOP DOWN AIR FLOW PERFORMANCE
A high peformance 92mm PWM fan with a range of 600 ~ 2400 RPM, cools not only the CPU, but all surrounding components inside the case for exceptional thermal results.
BREAK-THROUGH IN HEAT TRANSFER
The MasterAir G100M Heat column technology is a two-phase heat transfer involves the liquid-vapor phase change (boiling/evaporation and condensation) of a working fluid. The fluid is transferred by the copper powder filled inside the column creating an anti-gravity heat transfer.
7X LARGER DIAMETER THAN HEATPIPES
Super quick heat transfer is made possible with Heat Column at a massive Ø41.2, the equivalent of 7X the size of traditional heatpipes. The unification of heatpipes and base into one unit captures and effiicienty transfers the heat from CPU like never seen before.
LOW PROFILE FOR MINI-ITX BUILDS
The low profile G100M stands at 74.5mm, a great fit for slim PC cases, including mini-ITX cases. Even at these small dimensions, the heatsink has cooling capacity of 130W TDP.
RGB LED ILLUMINATION (CONTROLLER INCLUDED)
A wired RGB LED controller is included with theM100M to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.
TOP DOWN AIR FLOW PERFORMANCE
A high peformance 92mm PWM fan with a range of 600 ~ 2400 RPM, cools not only the CPU, but all surrounding components inside the case for exceptional thermal results.
130 W TDP
Art.nr: 52413
Produkten har utgått
Produktspecifikation
Prestanda
| Fläktdiameter | 10 cm |
| Maximalt luftflöde | 22,63 cfm |
| Rotationshastighet (max) | 2400 RPM |
| Rotationshastighet (min) | 600 RPM |
| Stödd processor uttag | LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2 +, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket |
Design
| Produktens färg | Svart |
| Belysningsfärg | Multi |
Strömtillförsel
| Strömförbrukning (vanlig) | 4,08 W |
Vikt & dimension
| Mått, fläkt (B x D x H) | 145 x 154 x 74,5 mm |
| Vikt | 380 g |
Fabrikat
| Tillverkare | Cooler Master |
| SKU | MAM-G1CN-924PC-R1 |
| Produktlänk | http://www.coolermaster.com/cooling/cpu-air-cooler/masterair-g100m/ |
Prestanda
| Fläktdiameter | 10 cm |
| Maximalt luftflöde | 22,63 cfm |
| Rotationshastighet (max) | 2400 RPM |
| Rotationshastighet (min) | 600 RPM |
| Stödd processor uttag | LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2 +, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket |
Design
| Produktens färg | Svart |
| Belysningsfärg | Multi |
Strömtillförsel
| Strömförbrukning (vanlig) | 4,08 W |
Vikt & dimension
| Mått, fläkt (B x D x H) | 145 x 154 x 74,5 mm |
| Vikt | 380 g |
Fabrikat
| Tillverkare | Cooler Master |
| SKU | MAM-G1CN-924PC-R1 |
| Produktlänk | http://www.coolermaster.com/cooling/cpu-air-cooler/masterair-g100m/ |
