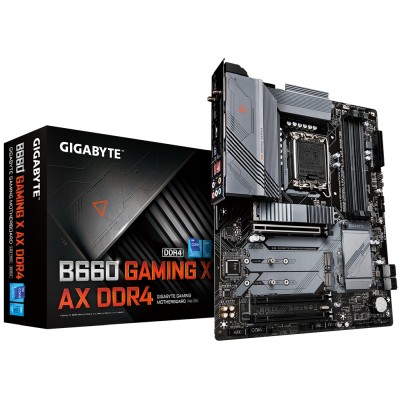

Gigabyte B660 GAMING X AX DDR4, Intel LGA1700, 2xPCI Express, ATX, 4xDDR4, 3xM.2 + SATA3 RAID, HDMI/DP, USB-C, 2.5Gbe LAN, WiFi, Bluetooth, RGB Fusion 2.0
Gigabyte B660 GAMING X AX DDR4
Intel® B660 GAMING Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, Fully Covered Thermal Design, 3 x PCIe 4.0/3.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, WIFI 6 802.11ax, Front USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus
• Supports 12th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 8+1+1 Hybrid Digital VRM Design with DrMOS*
• Fully Covered Thermal Design with High Coverage VRM Heatsinks
• WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna
• Fast 2.5 GbE GAMING LAN with Bandwidth Management
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
• SuperSpeed USB 3.2 Gen 2 Type-C® delivers up to 10Gb/s transfer speeds
• Pre-installed IO Shield for easy and quick installation
• High Quality Audio Capacitors and Audio Noise Guard
• RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card?
*DrMOS adopted only on Vcore/Vgt phase counts.
• Supports 12th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 8+1+1 Hybrid Digital VRM Design with DrMOS*
• Fully Covered Thermal Design with High Coverage VRM Heatsinks
• WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna
• Fast 2.5 GbE GAMING LAN with Bandwidth Management
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
• SuperSpeed USB 3.2 Gen 2 Type-C® delivers up to 10Gb/s transfer speeds
• Pre-installed IO Shield for easy and quick installation
• High Quality Audio Capacitors and Audio Noise Guard
• RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card?
*DrMOS adopted only on Vcore/Vgt phase counts.
Art.nr: 69605
Produkten har utgått
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Antal Ethernet (RJ-45) | 1 |
| Antal USB 2.0 anslutningar | 5 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel B660 |
Expansionsplatser
| Antal M.2 (M)-platser | 3 |
| PCI Express x16 platser | 2 |
Grafiken
| Maximal upplösning | 4096 x 2160 pixlar |
Internal I/O
| Antal anslutningar för fläktar | 3 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| TPM-anslutning | Ja |
| Serieport headers | 1 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR4-SDRAM |
| Minnets hastigheter | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400 MHz |
| ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.2 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 6E (802.11ax) |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0,1,5,10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | Gigabyte |
| SKU | B660 GAMING X AX DDR4 |
| Produktlänk | https://www.gigabyte.com/Motherboard/B660-GAMING-X-AX-DDR4-rev-10#kf |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Antal Ethernet (RJ-45) | 1 |
| Antal USB 2.0 anslutningar | 5 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel B660 |
Expansionsplatser
| Antal M.2 (M)-platser | 3 |
| PCI Express x16 platser | 2 |
Grafiken
| Maximal upplösning | 4096 x 2160 pixlar |
Internal I/O
| Antal anslutningar för fläktar | 3 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| TPM-anslutning | Ja |
| Serieport headers | 1 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR4-SDRAM |
| Minnets hastigheter | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400 MHz |
| ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.2 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 6E (802.11ax) |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Lagringskontroll
| RAID-nivåer | 0,1,5,10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | Gigabyte |
| SKU | B660 GAMING X AX DDR4 |
| Produktlänk | https://www.gigabyte.com/Motherboard/B660-GAMING-X-AX-DDR4-rev-10#kf |
