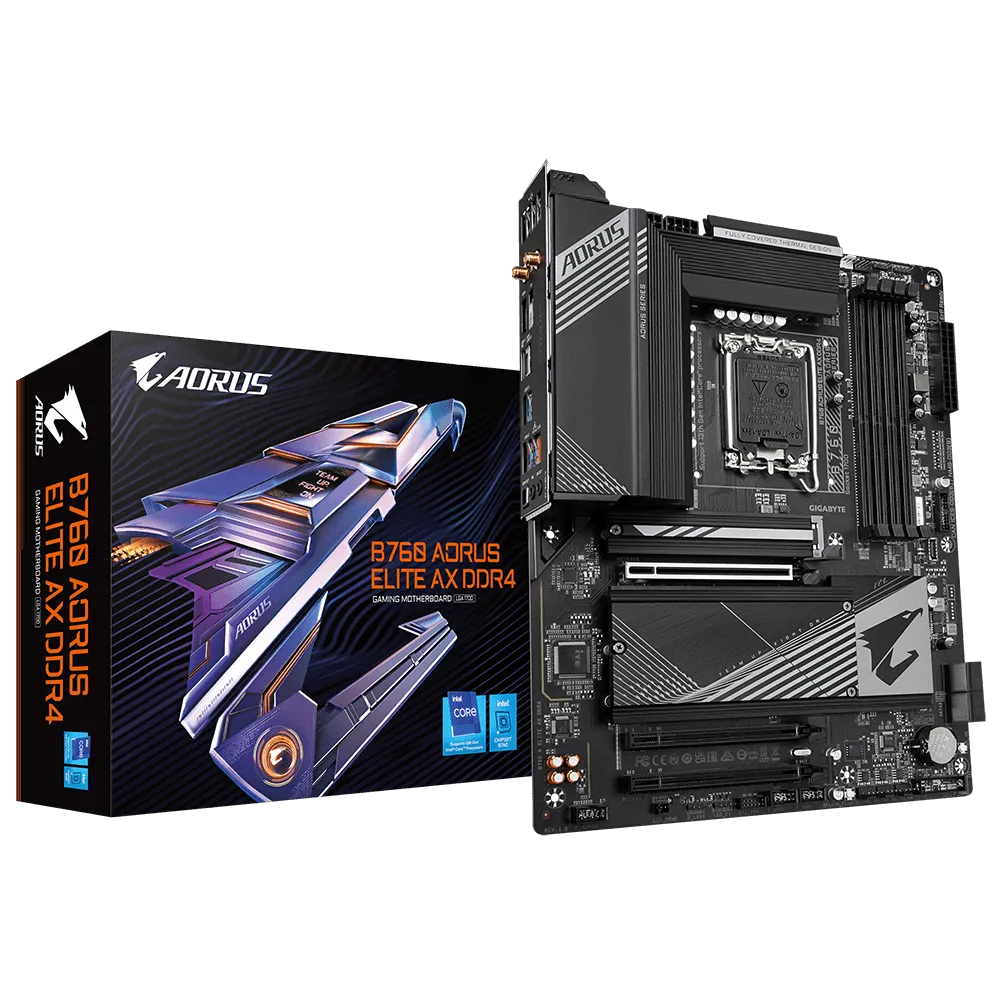

Gigabyte B760 AORUS ELITE AX DDR4, Intel LGA1700, 2xPCI Express, ATX, 4xDDR4, 3xM.2 + SATA3 RAID, HDMI/DP, USB-C, 2.5Gbe LAN, WiFi 6E, Bluetooth 5.3, RGB Fusion
Gigabyte B760 A ELITE AX DDR4
• Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
• Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR4:4*DIMMs with XMP Memory Module Support
• Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
• Fast Networks:2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
• li>Extended Connectivity:Rear and Front USB-C® 10Gb/s, DP, HDMI
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
• Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR4:4*DIMMs with XMP Memory Module Support
• Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
• Fast Networks:2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
• li>Extended Connectivity:Rear and Front USB-C® 10Gb/s, DP, HDMI
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Art.nr: 73706
Produkten har utgått
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.0 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Antal Ethernet (RJ-45) | 1 |
| Antal USB 2.0 anslutningar | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
| S/PDIF-utgång | 1 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel B760 Express |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 3 |
| PCI Express x16 (Gen 3.x)-kortplatser | 2 |
Grafiken
| Maximal upplösning | 4096 x 2304 pixlar |
Internal I/O
| Antal anslutningar för fläktar | 4 |
| USB 2.0 anslutning | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR4-SDRAM |
| Minnets hastigheter | 2133,2400,2666,2933,3000,3200,3300,3333,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 6E (802.11ax) |
Processor
| Processorsockel | LGA 1700 |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | Gigabyte |
| SKU | B760 A ELITE AX DDR4 |
| Produktlänk | https://www.gigabyte.com/Motherboard/B760-AORUS-ELITE-AX-DDR4-rev-10#kf |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.0 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Antal Ethernet (RJ-45) | 1 |
| Antal USB 2.0 anslutningar | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
| S/PDIF-utgång | 1 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel B760 Express |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 3 |
| PCI Express x16 (Gen 3.x)-kortplatser | 2 |
Grafiken
| Maximal upplösning | 4096 x 2304 pixlar |
Internal I/O
| Antal anslutningar för fläktar | 4 |
| USB 2.0 anslutning | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR4-SDRAM |
| Minnets hastigheter | 2133,2400,2666,2933,3000,3200,3300,3333,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| Wi-Fi | Ja |
| Wi-Fi-standard | Wi-Fi 6E (802.11ax) |
Processor
| Processorsockel | LGA 1700 |
Lagringskontroll
| RAID-nivåer | 0, 1, 5, 10 |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | Gigabyte |
| SKU | B760 A ELITE AX DDR4 |
| Produktlänk | https://www.gigabyte.com/Motherboard/B760-AORUS-ELITE-AX-DDR4-rev-10#kf |
