Asus PRIME B650M-A WIFI II, AMD AM5, MicroATX, 4xDDR5, PCI Express, 2xM.2 + SATA3 RAID, VGA/HDMI/DP, USB-C (front), 2.5Gbe LAN, WiFi 6, Bluetooth 5.2, Aura Sync RGB

Name: Asus PRIME B650M-A WIFI II, AMD AM5, MicroATX, 4xDDR5, PCI Express, 2xM.2 + SATA3 RAID, VGA/HDMI/DP, USB-C (front), 2.5Gbe LAN, WiFi 6, Bluetooth 5.2, Aura Sync RGB
Brand: ASUS
SKU: 74190

ASUS 90MB1EG0-M0EAY0

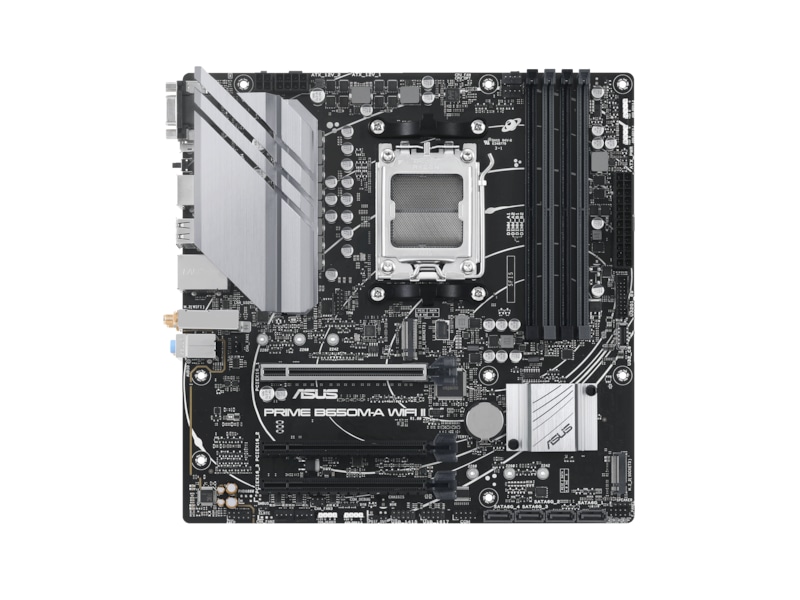

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync

• AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
• Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Art.nr: 74190

Butikslager

Hyvelgatan

{$antal} {$enhet} på väg (ber. 2024-11-26)

Fjärrlager

{$antal} {$enhet}

2 190 kr

Produktspecifikation

Egenskaper

Moderkort formfaktor	micro ATX
Moderkort chipset familj	AMD
Moderkort kretstyp	AMD B650
Ljudutgångskanaler	7.1 kanaler

Processor

Processorsockel

AM5-sockel

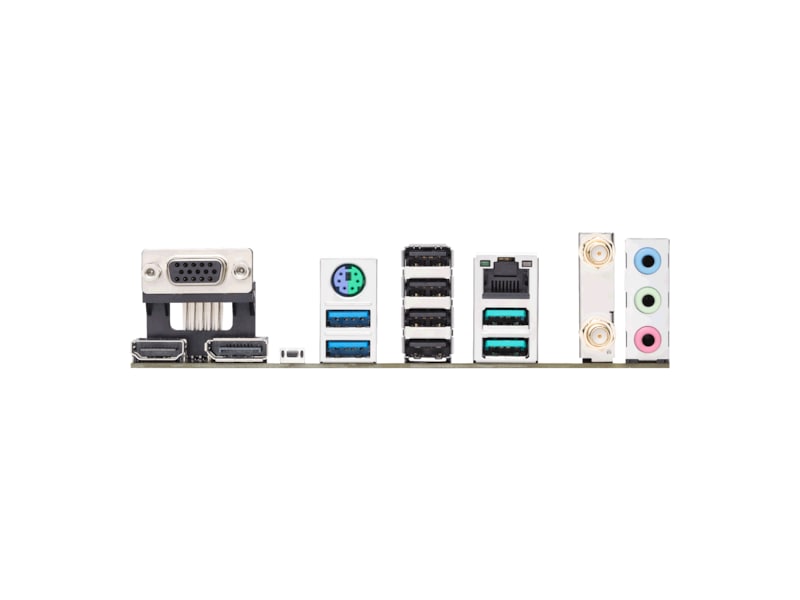

Anslutningsmöjligheter

Antal DisplayPorts	1
Antal HDMI	1
Hörlursutgångar	1
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar	2
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar	2
Uttag för mikrofon/linje in	Ja
Linje in	Ja
Antal USB 2.0 anslutningar	4
Antal LAN (RJ-45) anslutningar	1
Antal VGA (D-Sub)	1

Expansionsplatser

PCI Express x16 (Gen 4.x) platser

Internal I/O

USB 2.0 anslutning	2
Antal anslutningar för fläktar	3
USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar	2
RGB LED stiftlist	Ja
Antalet COM-anslutningar	1

Lagringskontroll

Lagringsenhetsgränssnitt som stöds	M.2, PCI Express 4.0, PCI Express 5.0, SATA
RAID-stöd	Ja
RAID-nivåer	0, 1, 10
Antal lagringsenheter som stöds	2

Minne

Antal minnesplatser	4
Minnets hastigheter	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximalt internminne	128 GB
Minneskanaler stöd	Dubbla kanaler
Minnestyper som stöds	DDR5-SDRAM

Nätverk

Nätverksansluten (Ethernet)	Ja
Typ av ethernet-gränssnitt	2.5 Gigabit Ethernet
Wi-Fi	Ja
Wi-Fi-standard	Wi-Fi 6 (802.11ax)
Bluetooth	Ja
Bluetooth-version	5.2

Vikt & dimension

Bredd	244 mm
Djup	244 mm

Fabrikat

Tillverkare	ASUS
SKU	90MB1EG0-M0EAY0
Produktlänk	https://www.asus.com/se/motherboards-components/motherboards/prime/prime-b650m-a-wifi-ii/
