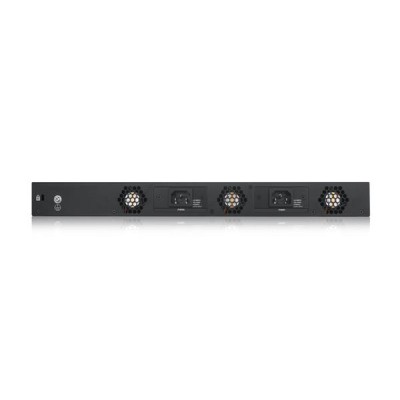

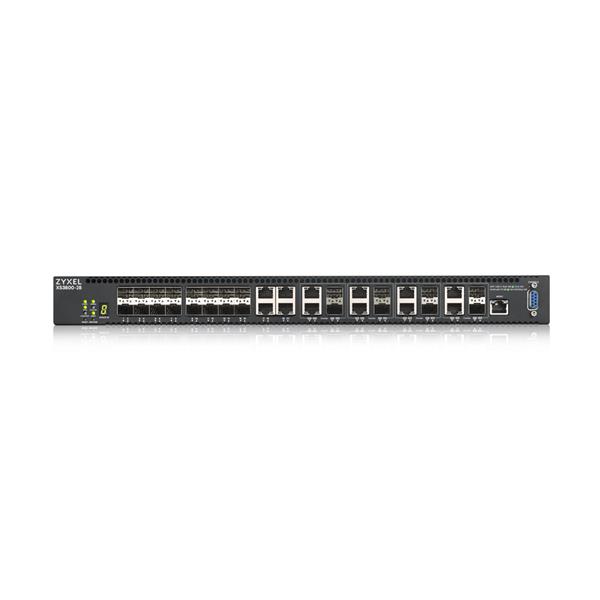

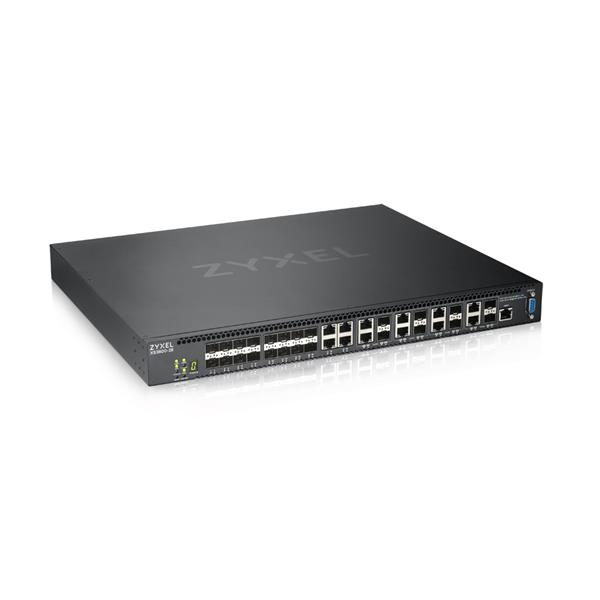

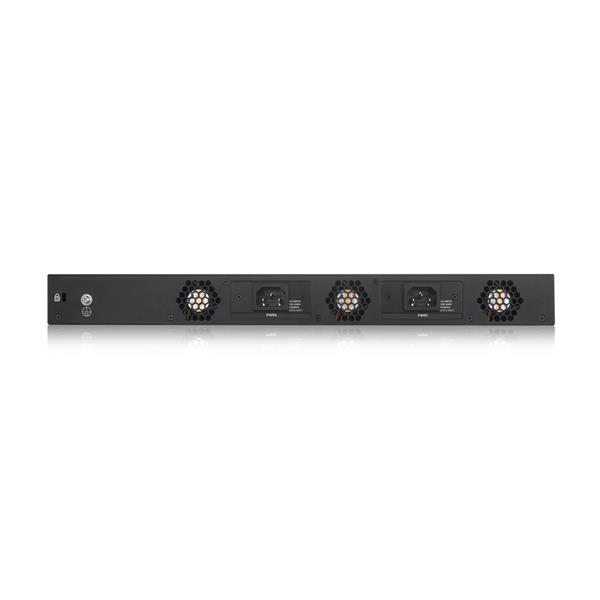

Zyxel XS3800-28, 28-port 10GbE L2+ Switch, L3 Routing, 12x 10G RJ45, 8x MultiGig (10G) RJ45/SFP+, 8x 10G SFP+

Port Density
Total port count
28

100M/1G/2.5G/5G/10G Ethernet (RJ-45)
4

Multi-Gigabit combo
(100M/1G/2.5G/5G/10G) RJ-45/(1G/10G) SFP+
8

1G/10G SFP+
16

Performance
Switching capacity (Gbps)
560

Forwarding rate (Mpps)
416

Packet buffer (byte)
4 MB

MAC address table
32 K

L3 forwarding table
Max. 4 K IPv4 entries
Max. 2 K IPv6 entries

Routing table
1K

VLAN routing
Yes

IP interface
128

Flash/RAM
64 MB/8 GB

Power
Dual power
100 - 240 V AC, 50/60 Hz

Max. power consumption (watt)
86.97

Physical Specifications
Dimensions (WxDxH)(mm/in.)
441 x 360 x 44/17.36 x 14.17 x 1.73
Weight (kg/lb.)
4.81/10.6

Included accessories
Power cord
Rack mounting kit

Environmental Specifications
Operating
Temperature: 0°C to 50°C/32°F to 122°F
Humidity: 10% to 95% (non-condensing)

Storage
Temperature: -40°C to 70°C/-40°F to 185°F
Humidity: 10% to 95% (non-condensing)

MTBF (hr)
656,274.78

Heat dissipation (BTU/hr)
296.57

Acoustic noise @ 25°C (dBA)
58.2
