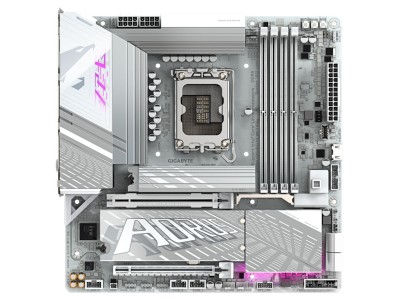

Gigabyte Z890M AORUS ELITE WIFI7 ICE, Intel LGA1851, MicroATX, 2xPCI Express, 4xDDR5, 3xM.2 + SATA3 RAID, DP/TB4/USB-C, 2.5GbE LAN, WiFi 7, Bluetooth 5.4, RGB Fusion#1

Nyhet!

Gigabyte Z890M AORUS ELITE WIFI7 ICE, Intel LGA1851, MicroATX, 2xPCI Express, 4xDDR5, 3xM.2 + SATA3 RAID, DP/TB4/USB-C, 2.5GbE LAN, WiFi 7, Bluetooth 5.4, RGB Fusion

Name: Gigabyte Z890M AORUS ELITE WIFI7 ICE, Intel LGA1851, MicroATX, 2xPCI Express, 4xDDR5, 3xM.2 + SATA3 RAID, DP/TB4/USB-C, 2.5GbE LAN, WiFi 7, Bluetooth 5.4, RGB Fusion
Brand: Gigabyte
SKU: 85191

Gigabyte Z890M A ELITE WF7 ICE

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 12+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L

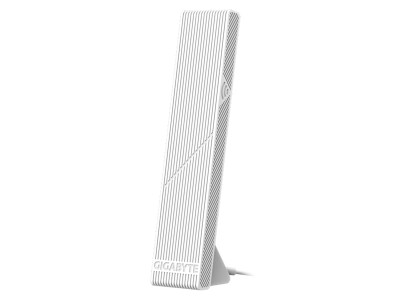

• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Art.nr: 85191

Butikslager

Hyvelgatan

Beställningsvara (ber. 2024-11-20)

Slite Utveckling

Beställningsvara (ber. 2024-11-20)

Fjärrlager

{$antal} {$enhet}

3 590 kr

Produktspecifikation

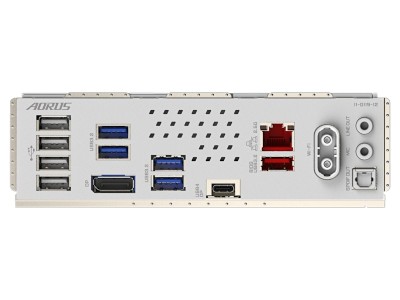

Anslutningsmöjligheter

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar	2
Antal Displayportar	2
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar	4
Antal USB 2.0 anslutningar	4
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar	0
Antal HDMI-portar	1
Antal Thunderbolt-portar	1
Antal LAN (RJ-45) anslutningar	1
S/PDIF-utgång	Ja
Uttag för mikrofon/linje in	Ja

Egenskaper

Ljudutgångskanaler	7.1 kanaler
Moderkort formfaktor	ATX
Moderkortets chipset	Intel Z890

Expansionsplatser

Antal M.2 (M)-platser

Internal I/O

USB 2.0 anslutning	2
USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar	1
USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar	1
Antal SATA III kontakter	4
TPM-anslutning	Ja

Minne

Antal minnesplatser	4
Maximalt internminne	256 GB
Minnestyper som stöds	DDR5-SDRAM
Minneskanaler	Dubbla kanaler

Nätverk

Wi-Fi-standard	Wi-Fi 7 (802.11be)
Typ av ethernet-gränssnitt	2.5 Gigabit Ethernet
Wi-Fi	Ja
Bluetooth	Ja
Bluetooth-version	5.4

Processor

Processorsockel	LGA 1851 (Socket V1)
Processortillverkare	Intel

Lagringskontroll

Lagringsenhetsgränssnitt som stöds	M.2, SATA III
Antal lagringsenheter som stöds	4
RAID-nivåer	0, 1, 5, 10
Antalet hårddiskar som stöds	7
RAID-stöd	Ja

Vikt & dimension

Bredd	244 mm
Djup	244 mm

Fabrikat

Tillverkare	Gigabyte
SKU	Z890M A ELITE WF7 ICE
Produktlänk	https://www.gigabyte.com/Motherboard/Z890M-AORUS-ELITE-WIFI7-ICE#kf
