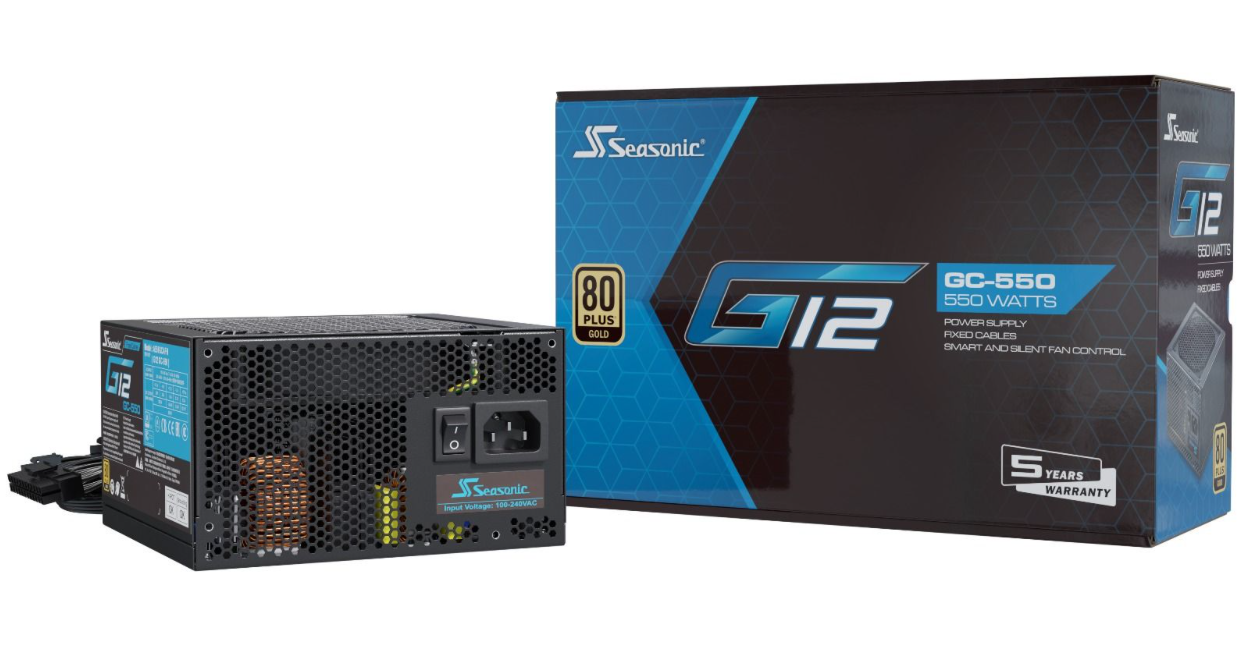

Seasonic G12 GC 550W, ATX, 120 mm fläkt, 80PLUS Gold
Seasonic G12-GC-550
The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
Total effekt
550 W
Art.nr: 73658
Hyvelgatan
Beställningsvara
Slite Utveckling
Beställningsvara
Fjärrlager
Fjärrlager
{$antal} {$enhet}
1 199 kr
2,18 kr / W
Produktspecifikation
Strömtillförsel
| Kombinerad effekt (+12 V) | 540 W |
| Kombinerad effekt (+3,3 V) | 100 W |
| Kombinerad effekt (+5 V) | 100 W |
| Kombinerad effekt (+5 VSB) | 12,5 W |
| Kombinerad effekt (-12V) | 3,6 W |
| Max utström (+12 V) | 45 A |
| Max utström (+3,3 V) | 15 A |
| Max utström (+5 V) | 15 A |
| Max utström (+5 VSB) | 2,5 A |
| Max utström (-12V) | 0,3 A |
| Växelström Frekvens | 50 - 60 hz |
| Total effekt | 550 W |
Anslutningar
| Antalet SATA strömkontakter | 6 |
| Moderkort strömkontakt | 20+4 pin ATX |
| PCI Express-nätkabelns längd | 70 cm |
| SATA-nätkabelns längd | 690 mm |
| Tillbehörsnätkabelns (Molex) längd | 690 mm |
| Typ av kablage | Icke-Modulär |
| Periferiska (Molex) strömkontakter (4-pin) | 3 |
| PCI Express strömkontakter (8-polig) | 1 |
Design
| Fläktdiameter | 12 cm |
| Produktens färg | Svart |
Prestanda
| Medeltid mellan fel (MTBF) | 100000 tim |
| Strömförsörjningsenhet formfaktor | ATX |
| 80 plus-certifiering | 80 PLUS Gold |
| Ändamål | PC |
Vikt & dimension
| Bredd | 150 mm |
| Djup | 140 mm |
| Höjd | 86 mm |
Fabrikat
| Tillverkare | Seasonic |
| SKU | G12-GC-550 |
