Seasonic Core GX ATX 3 (2024) 750W, ATX 3.1, 120 mm fläkt, 80PLUS Gold, löstagbara kablar
Seasonic SRP-CGX751-A5A32SF

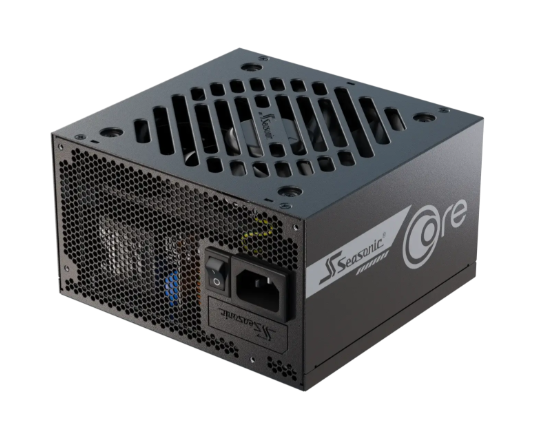

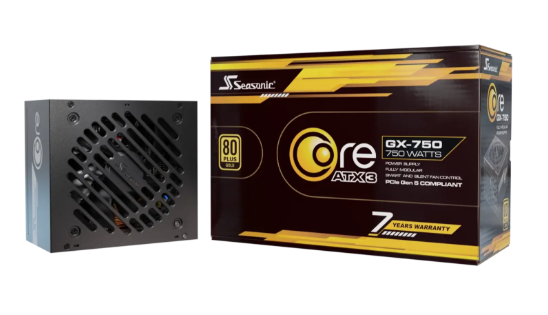

CORE GX ATX 3 (2024)
The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000W to 650W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance.?The 80 PLUS®?Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000W to 650W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance.?The 80 PLUS®?Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
750 W
Art.nr: 86318
Hyvelgatan
{$antal} {$enhet} på väg (ber. 2025-10-22)
Slite Utveckling
Beställningsvara (ber. 2025-10-22)
Fjärrlager
Fjärrlager
{$antal} {$enhet} (ber. 2025-10-22)
1 299 kr
1,73 kr / W
Produktspecifikation
Strömtillförsel
Effekt skyddsfunktioner | Överspänning, Överbelastning, Underspänning, Over total voltage, Överspänning, Kortslutning |
Kombinerad effekt (+12 V) | 744 W |
Kombinerad effekt (+3,3 V) | 100 W |
Kombinerad effekt (+5 VSB) | 15 W |
Kombinerad effekt (-12V) | 3,6 W |
Max utström (+12 V) | 62 A |
Max utström (+3,3 V) | 20 A |
Max utström (+5 VSB) | 3 A |
Max utström (-12V) | 0,3 A |
Växelström Frekvens | 50/60 hz |
Total effekt | 750 W |
Design
Fläktdiameter | 12 cm |
Produktens färg | Svart |
På / av-knapp | Ja |
Kylning typ | Aktiv |
Prestanda
ATX-version | 3.1 |
Medeltid mellan fel (MTBF) | 100000 tim |
Strömförsörjningsenhet formfaktor | ATX |
80 plus-certifiering | 80 PLUS Gold |
Ändamål | PC |
Vikt & dimension
Bredd | 150 mm |
Djup | 140 mm |
Höjd | 86 mm |
Förpackningens innehåll

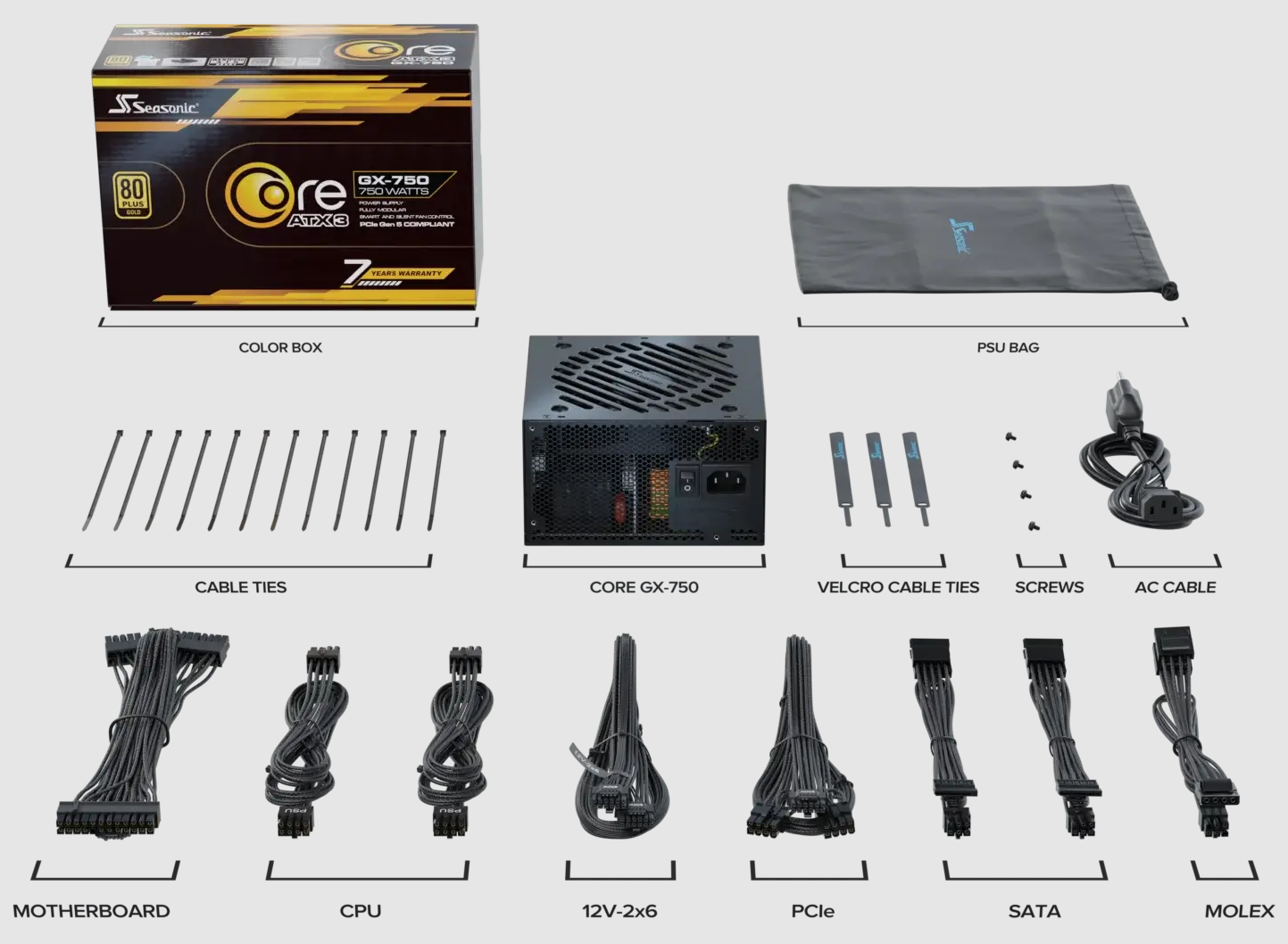

Kabel inkluderad | AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA |
Fabrikat
Tillverkare | Seasonic |
SKU | SRP-CGX751-A5A32SF |
Strömtillförsel
Effekt skyddsfunktioner | Överspänning, Överbelastning, Underspänning, Over total voltage, Överspänning, Kortslutning |
Kombinerad effekt (+12 V) | 744 W |
Kombinerad effekt (+3,3 V) | 100 W |
Kombinerad effekt (+5 VSB) | 15 W |
Kombinerad effekt (-12V) | 3,6 W |
Max utström (+12 V) | 62 A |
Max utström (+3,3 V) | 20 A |
Max utström (+5 VSB) | 3 A |
Max utström (-12V) | 0,3 A |
Växelström Frekvens | 50/60 hz |
Total effekt | 750 W |
Design
Fläktdiameter | 12 cm |
Produktens färg | Svart |
På / av-knapp | Ja |
Kylning typ | Aktiv |
Prestanda
ATX-version | 3.1 |
Medeltid mellan fel (MTBF) | 100000 tim |
Strömförsörjningsenhet formfaktor | ATX |
80 plus-certifiering | 80 PLUS Gold |
Ändamål | PC |
Vikt & dimension
Bredd | 150 mm |
Djup | 140 mm |
Höjd | 86 mm |
Förpackningens innehåll
Kabel inkluderad | AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA |
Fabrikat
Tillverkare | Seasonic |
SKU | SRP-CGX751-A5A32SF |
